Haptique RS90 - MQTT Developer API

ccsfounder · November 28, 2025, 4:52am

Version: 1.1
Protocol: MQTT 3.1.1 / 5.0

This document outlines the MQTT topics and payloads for integrating the Haptique RS90.
Note: The RS90 uses Retained Messages for state and configuration. You do not need to send “Get” commands. Simply subscribe to the topics below, and the broker will automatically deliver the current data immediately.

1. Device ID (Auto-Reported)

Topic: Haptique/{RemoteID}
Type: Subscribe
Retained: Yes

2. System Status (Auto-Reported)

Connection Status

The Haptique updates this topic automatically when it connects or disconnects (via Last Will & Testament).

Topic: Haptique/{RemoteID}/status
Type: Subscribe
Retained: Yes
Payload:
- online
- offline

3. Resource Discovery (Auto-Reported)

The remote publishes its configuration to these topics upon connection.

Device List

A list of all devices configured on the remote.

Topic: Haptique/{RemoteID}/device/list
Type: Subscribe
Retained: Yes
Value: JSON Array

[
  {
     "Id":"{id}",
     "name":"{deviceName}"
  },
  {
     "id":"{id}",
     "name":"{deviceName}"
  }
]

Topics to Subscribe

1. Macro List

A list of all macros configured on the remote.

Topic: Haptique/{RemoteID}/macro/list
Type: Subscribe
Retained: Yes
Value: JSON Array

[
  {
     "Id":"{id}",
     "name":"{macroname}"
  },
  {
     "id":"{id}",
     "name":"{macroname}"
  }
]

2. Trigger macro

Topic: Haptique/{RemoteID}/macro/{macroname}/trigger
Type: Subscribe
Retained: Yes
Payload: JSON Array
```
 on
```
```
 off
```

3. Device commands

A list of commands of device configured on the remote.

Topic: Haptique/{RemoteID}/device/{devicename}/detail
Type: Subscribe
Retained: Yes
Value: JSON Array

[
  {
     "Id":"{commandID}",
     "name":"{commandname}"
  },
  {
     "id":"{commandID}",
     "name":"{commandname}"
  }
]

4. Trigger command

Topic: Haptique/{RemoteID}/device/{devicename}/trigger
Type: Subscribe
Payload: JSON
```
 {commandID}
```

5. Battery Level

The remote reports battery level in response to the topic below is published.

Topic: Haptique/{RemoteID}/battery/status
Type: Subscribe
Retained: Yes
Response
: RAW
```
{%}
```

6. Key event

The remote reports physical button press level in response to the topic below is published.

Topic: Haptique/{RemoteID}/keys
Type: Subscribe
Retained: Yes
Payload: JSON
```
  keys = button:#
```

7. RGB Ring light

Toggle RGB ring default animation.

Topic: Haptique/{RemoteID}/ledlight/on (on/off)
Type: Subscribe
Payload: JSON
```
  {seconds 1-10}
```

8.Installed App List

Returns a list of all installed apps on the Haptique Remote.

Topic: Haptique/{RemoteID}/app/list
Type: Subscribe
Retained: Yes
Value: JSON Array

[
  {
     "Id":"{package}",
     "name":"{name}"
  },
  {
     "Id":"{package}",
     "name":"{name}"
  }
]

9.Open Installed Apps

Opens an installed app using either the app name or package name.

Topic: Haptique/{RemoteID}/app/{app name or package}/open
Type: Subscribe

daangel27 · December 2, 2025, 1:52pm

Hi,

I’m currently working on HA integration, but on my side i don’t have battery level in MQTT haptique Topic. Is there a particular settings on Haptique remote to publish the battery level value ?

Thx

ccsfounder · December 2, 2025, 5:04pm

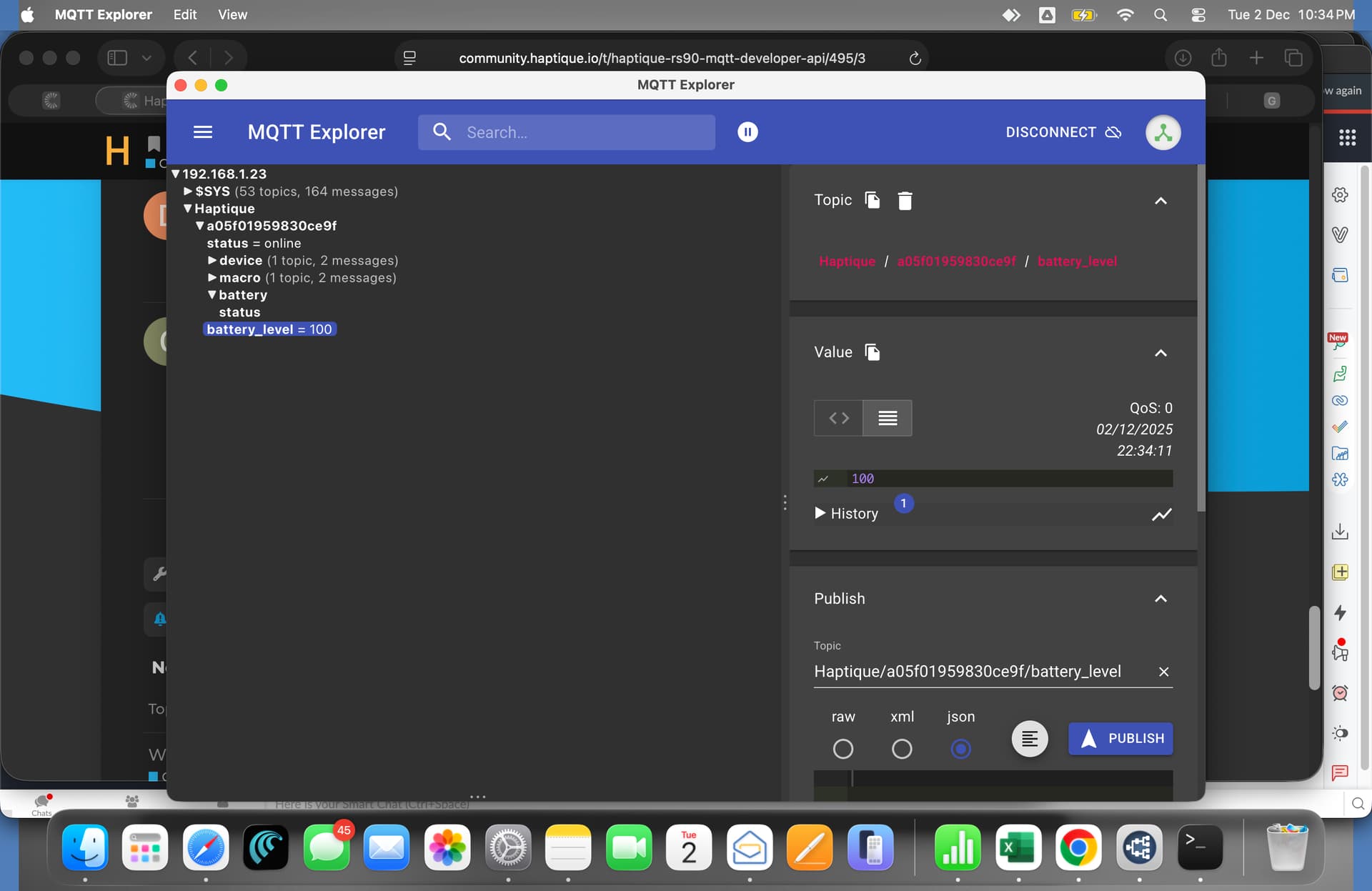

Publish this topic and you should get the response

Haptique/{RemoteID}/battery/status

daangel27 · December 2, 2025, 5:36pm

@ccsfounder ,
It’s working.
Thx a lot

Jaap · December 23, 2025, 1:35pm

I’ve seen that MQTT now is implemented but it asks for a username and password while I host my own MQTT it does not have a username and password. Could this also be made possible for the haptique connection?

ccsfounder · December 24, 2025, 4:29am

The credentials required are of the broker to make a secure connection. Imaging anyone accessing your Haptique to connect to any random broker on the network. They can control Haptique with ease. So just setup your broker with credentials and add it on the config app settings.

Jaap · December 24, 2025, 8:09am

The MQTT server is in my own network and external acces is nog an issue so I like to have the choice to use it without having to fill in my credentials.
I do have other things working throud MQTT without having to use credentials and that’s completely save.

ccsfounder · December 24, 2025, 11:14am

We will see this in next updates.

daangel27 · December 24, 2025, 3:39pm

Hi @ccsfounder ,

Clarification Needed for RGB Ring Light API
The MQTT API documentation for the RGB Ring Light feature is ambiguous and needs clarification:
Current Documentation:
7. RGB Ring light
Toggle RGB ring default animation.

Topic: Haptique/{RemoteID}/ledlight/on (on/off)
Type: Subscribe
Payload: JSON
{seconds 1-10}
Questions:

Topic interpretation:

Does (on/off) mean the payload should be “on” or “off”?
Or does it mean there are two separate topics: ledlight/on and ledlight/off?
Or is it just indicating the topic controls on/off state?

Payload format:

Should the payload be a JSON object like {“duration”: 5} or {“seconds”: 5}?
Or just a plain string/number like “5” or 5?
Can we send “off” as payload to manually turn off the animation?
Is there an “on” payload option (with default duration)?

Behavior:

Does the RS90 automatically publish back to this topic when the animation ends?
Or should the integration track the duration and update state locally?

Implementation scenarios:
Scenario A (number only):
Payload: “5” → Activates for 5 seconds, then auto-stops
Payload: “10” → Activates for 10 seconds, then auto-stops
No manual “off”

Scenario B (number or on/off):
Payload: “5” → Activates for 5 seconds
Payload: “off” → Manually stops animation
Payload: “on” → Activates with default duration (?)

Scenario C (JSON format):
Payload: {“seconds”: 5}
Payload: {“state”: “off”}
Please clarify the correct usage to ensure proper integration implementation.

Thanks.
Regards
DA.

ccsfounder · December 26, 2025, 2:13pm

Hello @daangel27,

Timer is optional, you can send the topic for on and by default RGB will stay active for 10 seconds. If you want to shorten this time use Payload as value from 1 to 10. Off timer is also optional because you don’t want to target the time to Off after given time

I suggest to just implement On trigger and Payload adjustment rest Off can be ignore to build the integration.

daangel27 · December 27, 2025, 1:25pm

Hello @ccsfounder,

OK, thanks for informations;

This what is now implemented in release V1.5.1.

RGB Ring Light Control

New button entity button.rgb_ring_light for quick RGB activation (5s default)
Service haptique_rs90.trigger_rgb_light with customizable duration (1-10 seconds)
Smart local timer auto-updates state after duration expires
MQTT implementation uses retain=false to prevent unwanted replay on RS90 reconnect.

Regards.

Fonzo · January 26, 2026, 7:57am

Since OPUS 1 has now been released, please add another MQTT topic for App Focus. This MQTT topic should transmit the active app currently displayed on the RS90’s screen.

Only by combining knowledge of the active app with the keystrokes is it possible to meaningfully process the keystrokes in an external system or trigger specific actions, depending on which app is currently displayed.

Fonzo · January 26, 2026, 2:06pm

With the availability of OPUS 1, it would still be desirable to be able to launch apps installed on the RS90 via MQTT.

This would eliminate the need for additional tools like Tasker for this purpose on the RS90.

ccsfounder · January 26, 2026, 2:34pm

Sure, let us discuss this with devs.

Fonzo · January 28, 2026, 3:01pm

First of all, thanks for providing the initial MQTT support for the RS90. Being able to trigger the default RGB ring animation via MQTT is already very useful and works well in practice in first tests.

While exploring the RS90 further, I noticed something interesting that I wanted to ask about:

On the RS90 itself, there is an internal test/diagnostic app (“检测工具 / Test Tool”), which includes an RGB test menu.

In this menu it is possible to:

continuously send red
continuously send green
continuously send blue
continuously send white
generate a random color
run a cyclic animation (yellow / green / blue / white)
explicitly stop the RGB output

So it seems that the RS90 firmware already supports:

setting specific RGB colors,
different RGB modes/animations,
and a clear “stop/off” command.

With the current MQTT API (v1.1), however, it looks like MQTT can only:

toggle the default RGB ring animation, without selecting color or mode.

My question is therefore:

Are there plans to extend the MQTT API to expose more of the existing RGB functionality, such as:

setting a specific color (RGB / hex),
selecting a mode (static, cycle, random),
and explicitly stopping the RGB ring?

This would make the MQTT integration even more powerful for home automation systems like IP-Symcon or Home Assistant, especially for visual feedback (notifications, errors, charging state, etc.).

Thanks again for the great work on the RS90 MQTT API, and I’m happy to test or provide feedback if needed.

ccsfounder · January 29, 2026, 4:38am

You are right, we just added support to trigger RGB default animation. What you are expecting will follow in the next updates as we push more features on the MQTT. One of the them is to allow to open Android Apps using Json payload. Which we have already discussed internally. The flow for the apps will be, subscribe to a Topic sending App package name first. Next Publish a topic specifying app package name in Json to launch it.

The same way we will also open RGB control. But please note, there will be few limitation to handle colours individually as the RGB firmware is written in a different system STM32 which is fixed and we cannot change it OTA. So whatever is possible we will expose it to the MQTT.
